Freedom Scooter S1 – Please contact us for price, colours & availability

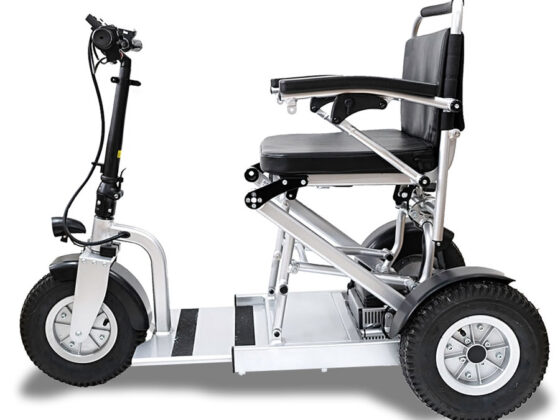

Freedom Mobility Scooter S1.

Available from Devon Disability Collective, Exeter, Devon. Local price match guarantee.

Please contact us for more details:

Tel: 01392 428585

Email: enquiries@devondisabilitycollective.org

Product Features:

2 x 250 watt motors
Up to 30 km driving range
Up to 120 kg user weight
17 inch seat width (extendable)
40 mm obstacle crossing
Powerful twin electric motors enable you to explore further

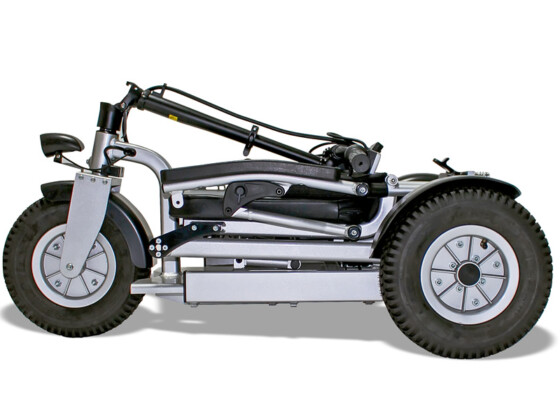

Lightweight and designed to fold to a compact size for easier transportation and storage
High quality build, with class leading design and manufacture

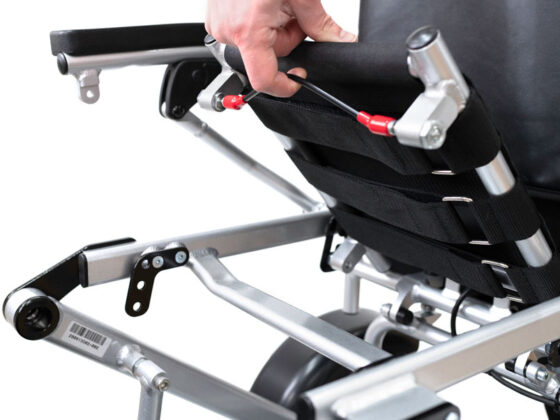

Customisable to suit the user, including electric adjustment of wheelbase length, plus adjustable seat height
Batteries approved for air travel
Anti-tip wheels give reassuring stability, ensuring safety for the user

Product Specifications:

Total length	1080-1230mm ±5mm (Base frame is extendable) Folded length 1080±5mm
Total width	640mm ±5mm Folded width 640mm ±5mm
Total height	920mm ±5mm Folded height 530mm ±5mm
Total weight:	38kg±1kg
Static stability downhill	20°±1°
Static stability uphill	15°±1°
Lateral static stability	16°±1°
Dynamic stability uphill	10°±1°
Obstacle-crossing ability	40mm±5mm
Forward speed	6±0.5km/h
Off-road speed	Configurable
Minimum braking distance	1.0m±0.5m @ 7km/h
Minimum turning radius	800mm±5mm
Seat plane angle	3°±1° Effective seat depth: 375mm±5mm
Effective seat width	430mm±5mm Front seat surface height: 470-510mm±5mm (seat height adjustable)
Backrest angle	12°±1° Backrest height: 760mm
Distance from armrest to seat	160mm±5mm Distance from front armrest to backrest: 335mm±5mm
Wheelbase	765-915mm±5mm (base frame can be contracted)
Maximum load capacity	120kg
Front and rear wheel size	12” x 3.5″ pneumatic tires.

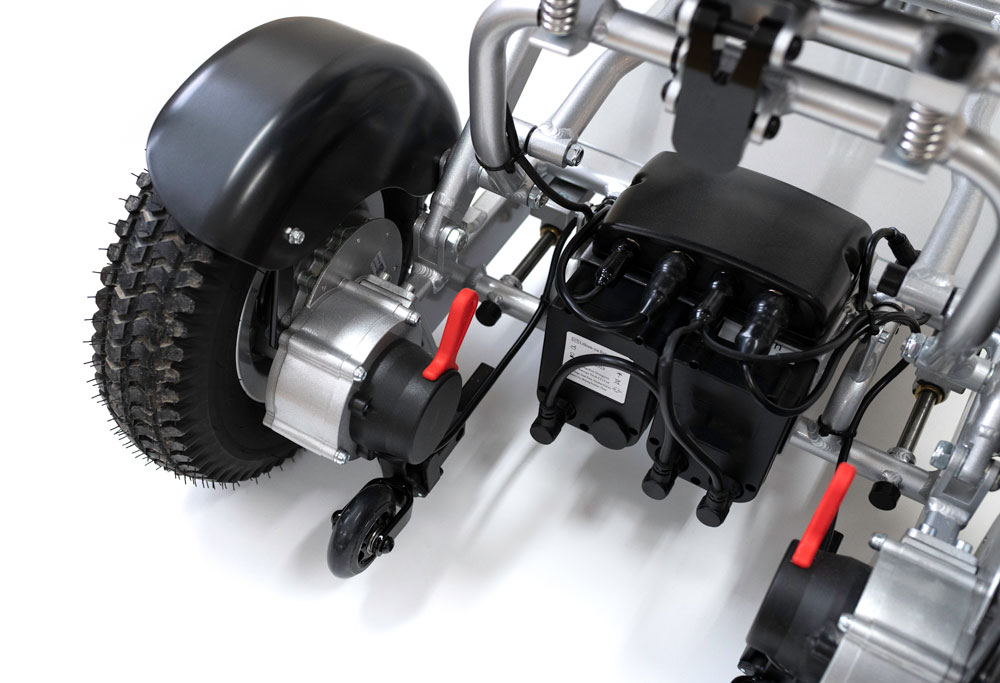

Motor parameters	2 x 24V DC brushless motors, each at 250W continuous 300W peak
Energy consumption	2.4±0.5kw-h/100km
