Best Companion for Light Travel
The Ergo Lite 2 (KM-2512) is an ultralight aluminum wheelchair with the ergonomic features of the Ergo Lite. Transfer easily on and off the wheelchair with the detachable swing-away footrests. Choose between the attendant-propelled or the self-propelled rear wheels.
Ultralight and Sturdy
We strive to make the caretaker’s life easier. The rear wheels and the footrests of the self-propelled wheelchair are detachable, reducing the weight to just 6 kg.
Detachable Swing-Away Footrests
Allows for easy transfer, on and off the wheelchair and detaches with no tools required.
Easy to Transport and Store
Convenient and suitable for elderly and female caregivers to take care of elderly users. Easy to carry out and foldable for storage.
Choose between the attendant-propelled wheelchair with 14″ rear wheels or the self-propelled wheelchair with 20″ rear wheels.
Push & Pull Brake System (for 14″ Rear Wheel)
Ideal for caregivers who can’t continuously bend over to park the wheelchair as it can cause long-term back problems.

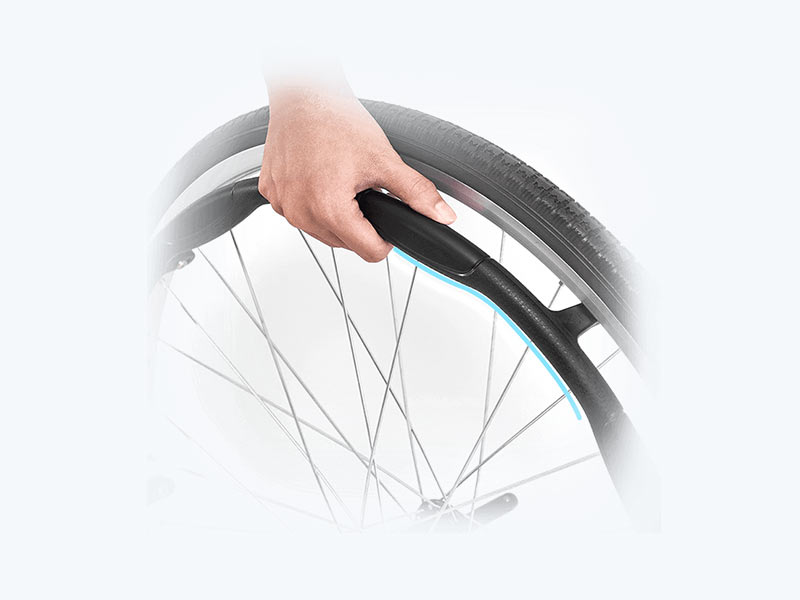

Ergo Handrim (for 20″ Rear Wheel)
The ergonomic hand-rim gives more comfort and greater mobility for better propulsion and efficient braking.
S-Ergo Seating System
The S-Ergo Seating is globally patented in many countries. The seating provides the wheelchair user with basic pressure relief without having to purchase a foam cushion. While a foam cushion can be cumbersome and pricey, the S-Ergo Seating frame is lightweight and simple, offering the short-term wheelchair user an inexpensive option.
|Product Model||Ergo Lite 2 (KM-2512)|
|Nominal seat width (mm/in)*||400 / 16||450 / 18||400 / 16||450 / 18|
|Nominal seat depth (mm/in)**||420 / 16||420 / 16||420 / 16||420 / 16|
|Front caster / Rear wheel size (in)||6 / 14||6 / 14||6 / 20||6 / 20|
|Backrest height (mm)||420||420||420||420|
|Headrest height above seat (mm)||N/A||N/A||N/A||N/A|
|Armrest to seat distance (mm)||215||215||215||215|
|Front location of armrest structure (mm)||310||310||310||310|
|Seat surface height at front edge (mm)||480||480||480||480|
|Footrest to seat distance (mm)||360 ~ 410||360 ~ 410||360 ~ 410||360 ~ 410|
|Effective seat width (mm)||400||450||400||450|
|Effective seat depth (mm)||430||430||430||430|
|Seat plane angle (X°)||5||5||5||5|
|Backrest angle (X°)||11||11||11||11|
|Seat to backrest angle (X°)||96||96||96||96|
|Leg to seat angle (X°)||102||102||102||102|
|Overall length with legrest (mm)||935||935||930||930|
|Overall width (mm)||570||615||595||645|
|Overall height (mm)||900||900||900||900|
|Folded length (mm)||635||635||695||695|
|Folded width (mm)||280||295||280||295|
|Folded height (mm)||700||710||700||710|
|Total mass (kg)||9.2||9.3||10.7||10.9|
|Mass of the heaviest part (kg)||8.1||8.3||6.7 (20Q)
|Maximum user weight (kg)||100||100||100||100|
|Minimum turning radius (mm)||810||840||820||840|
|Minimum turning radius without user (mm)||725||750||735||760|
|Pivot width (mm)||1140||1160||1150||1180|
|Static stability downhill (X°)||18.1||18.1||17.9||17.9|
|Static stability uphill (X°)||10.8||10.8||10.1||10.1|
|Static stability sideways (X°)||11.9||11.9||11.4||11.4|
|Handrim diameter (mm)||N/A||N/A||430||430|
|Horizontal location of axle (mm)||20||20||5||5|
